Building Cloud Native Apps Painlessly

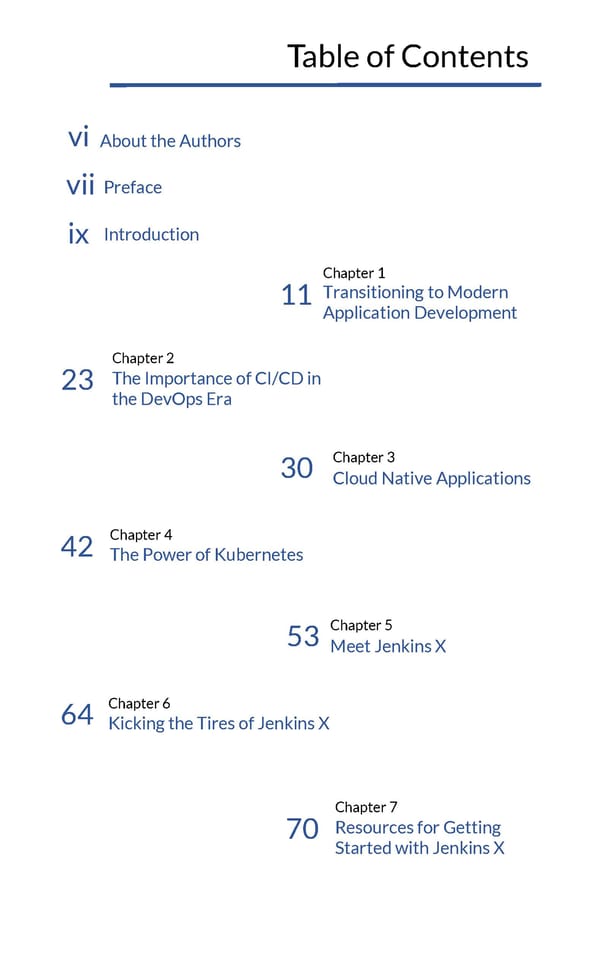

Table of Contents vi About the Authors vii Preface ix Introduction Chapter 1 11 Transitioning to Modern Application Development Chapter 2 23 The Importance of CI/CD in the DevOps Era 30 Chapter3 Cloud Native Applications 42 Chapter 4 The Power of Kubernetes 53 Chapter 5 Meet Jenkins X 64 Chapter 6 Kicking the Tires of Jenkins X Chapter 7 70 Resources for Getting Started with Jenkins X

Building Cloud Native Apps Painlessly The Prescriptive Guide to Kubernetes and Jenkins X By Robert Davies, Brian Dawson, James Rawlings and James Strachan Published by Hurwitz & Associates, LLC 35 Highland Circle Needham, MA 02494 Copyright © 2018 by Hurwitz & Associates, LLC Notice of rights: All rights reserved. No part of this book may be reproduced or transmitted in any form or by any means without prior written permission from the Publisher. Notice of liability: The authors have made every effort to en- sure the accuracy of the information within this book was cor- rect at time of publication. The authors do not assume and hereby disclaim any liability to any party for any loss, damage, or disruption caused by errors or omissions, whether such er- rors or omissions result from accident, negligence, or any other cause. ® Trademarks: The registered trademark Jenkins is used pursuant to a sublicense from the Jenkins project and Software in the Public Inter- est, Inc. Read more at www.cloudbees.com/jenkins/about CloudBees and CloudBees DevOptics are registered trademarks and CloudBees Core, CloudBees CodeShip, CloudBees Jenkins Enterprise, CloudBees Jenkins Platform and DEV@cloud are trademarks of CloudBees. Other product or brand names may be trademarks or reg- istered trademarks of their respective holders. ISBN: 978-1-949260-12-0 Printed in the USA by Hurwitz & Associates, LLC www.hurwitz.com ii

Acknowledgments This book has been a collaboration between the authors, publisher and editors. Some of the team members that helped make this book possible are: Managing Editors: Judith Hurwitz, Hurwitz & Associates Daniel Kirsch, Hurwitz & Associates Editorial Project Manager: Diana Hwang, CloudBees, Inc. Cover and Graphic Design: Kate Myers Layout and Interior Design: Caroline Wilson iii

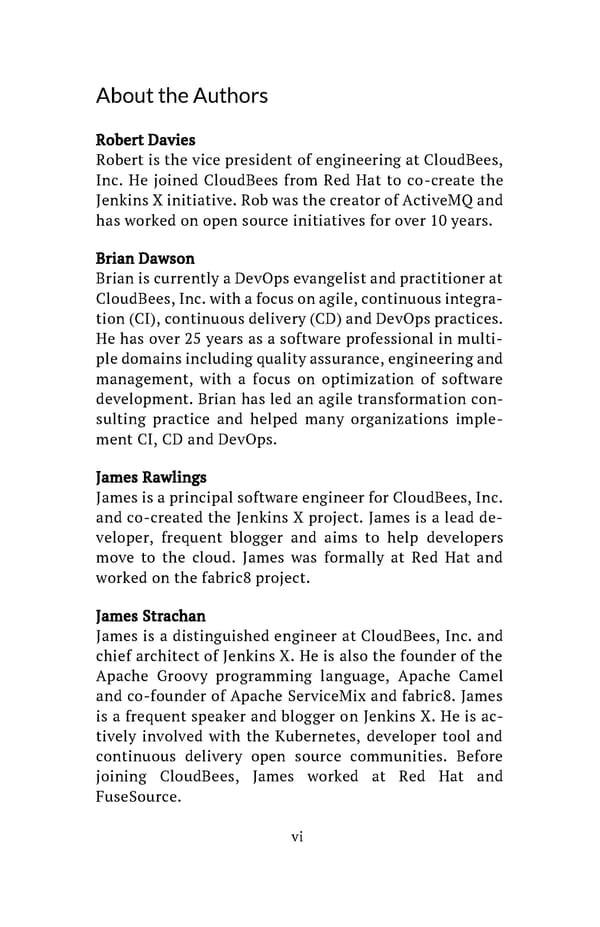

About the Authors Robert Davies Robert is the vice president of engineering at CloudBees, Inc. He joined CloudBees from Red Hat to co-create the Jenkins X initiative. Rob was the creator of ActiveMQ and has worked on open source initiatives for over 10 years. Brian Dawson Brian is currently a DevOps evangelist and practitioner at CloudBees, Inc. with a focus on agile, continuous integra- tion (CI), continuous delivery (CD) and DevOps practices. He has over 25 years as a software professional in multi- ple domains including quality assurance, engineering and management, with a focus on optimization of software development. Brian has led an agile transformation con- sulting practice and helped many organizations imple- ment CI, CD and DevOps. James Rawlings James is a principal software engineer for CloudBees, Inc. and co-created the Jenkins X project. James is a lead de- veloper, frequent blogger and aims to help developers move to the cloud. James was formally at Red Hat and worked on the fabric8 project. James Strachan James is a distinguished engineer at CloudBees, Inc. and chief architect of Jenkins X. He is also the founder of the Apache Groovy programming language, Apache Camel and co-founder of Apache ServiceMix and fabric8. James is a frequent speaker and blogger on Jenkins X. He is ac- tively involved with the Kubernetes, developer tool and continuous delivery open source communities. Before joining CloudBees, James worked at Red Hat and FuseSource. vi

Preface A LETTER FROM THE CREATOR OF JENKINS When I wrote the first line of a shell script that would eventually become Jenkins, one of the motivations was to make myself and other developers in the team more pro- ductive. Software development in my team was still held together in good part by lots of manual work, emails, meetings and phone calls. I felt like a bit of automation would go a long way in reducing those, so that we could all spend more time doing things that actually matter, such as designing, collaborating and writing more code. That shell script is long gone, but it turns out the idea lived longer than any of the code written for Jenkins, and got bigger than myself. It transcended beyond me to the Jenkins community of thousands of contributors and mil- lions of users. It took me time to understand what was really going on, but it turns out there were a lot of people like me everywhere in the world. Under the umbrella of the Jenkins project, we were able to join hands - devel- oper to developer - to collectively create this open source ecosystem that enabled us to build amazing applications faster. And it’s this same idea that carries through to Jenkins X, the newest addition to the Jenkins family. Jenkins X takes a bold and exciting approach to this idea. It takes all the “awesome” (which is one of the James Strachan-isms I picked up) things happening in the world of microservices and cloud native application development and assembles those into a simple form that makes sense for everyone. vii

This is great because the technology landscape of web ap- plication development is evolving at a breakneck speed, and that’s forcing everyone to pause and understand how to effectively utilize the latest additions to their toolbox. Kubernetes, twelve factor apps, environment provision- ing, horizontal scaling … the list goes on. It’s almost as if what’s supposed to make you productive is actually slow- ing you down. That’s why we built Jenkins X. It takes all those concerns and bottlenecks out of the process. It makes the easiest thing the right thing, so that you can focus on what mat- ters. And above all, we built Jenkins X because we are driven by the basic human desire to help others. Indeed, people in the Jenkins community take great pride and satisfac- tion in helping you, our fellow software developers. So please take this little gift from us. I know you will like it. Kohsuke Kawaguchi Creator of Jenkins, CTO of CloudBees, Inc. viii

Introduction We are entering a new era where developers need to begin building cloud native applications based on a container- ized, microservices architecture. At the same time, there has been an incredible amount of innovation based on the open source revolution. This innovation is driving change in the world of software development and deployment at a frenetic pace. When executed well, these new applica- tions will help businesses be better prepared for changes in customer requirements. The purpose of this book is to introduce you to the com- bination of two powerful open source standards: Kuber- netes and Jenkins X. Kubernetes is the de facto standard for container orchestration while Jenkins X is a platform that hides the complexities of Kubernetes from the devel- oper. By adopting Jenkins X, developers are able to focus on creating high-quality code and excellent user experi- ences rather than getting bogged down by the intricacies of Kubernetes. The power of Kubernetes and Jenkins X together, is a partnership that enables organizations to leverage cloud native environments in a consistent and predictable way. To be successful in a cloud dominated world requires that teams of business and technical leaders collaborate to create meaningful solutions to make customers success- ful. This collaboration results in new business models that can change the way business is revolutionized. Why read this book? This book gives you a roadmap to understanding what Ku- bernetes is and the ecosystem of open source tools that sur- round it. We will put this important platform in context with ix

cloud native applications and continuous integration and continuous deployment. You will learn what it is like to cre- ate new, cloud native applications and the emerging new challenges. Once you understand the complexities inherent in containers and container orchestration, along with an ap- preciation of the hundreds of open source tools, it will be- come clear that an environment like Jenkins X has the po- tential to change everything. The book will discuss the building blocks to Jenkins X and will give you a prescriptive guidance on how to get started. Who should read this book? This book is written for developers and DevOps managers who are beginning to understand the power of open source tools such as Kubernetes and Jenkins X, and give you insights into the new world of cloud native applica- tions development. Both developers and operations teams need to understand continuous integration and continuous delivery in order to be successful. We wrote this book so that you can share your insights and obser- vations with your management team and your colleagues to support the goals of modern application development and deployment. This book is not documentation nor is it a technical man- ual, but it gives you a framework to understand your next steps in creating true business value. Future books in this series will delve deeper into the details of leveraging Jen- kins X to support your cloud native applications develop- ment and deployment. It is important to remember that Jenkins X is a community project and it will continue to evolve to meet the changing needs of contributors, devel- opers and customers. x

Chapter 1 Transitioning to Modern Application Development Inside » The impact of modern applications on customer engagement » Cashing in on the cloud » The evolution of DevOps » Building security into your development process » The increasing importance of clouds, containers and microservices Software has become the critical tool driving businesses forward in new and innovative ways. Applications have never been more important and the relationship between many businesses and their customers is solely based around mobile and web applications. Application perfor- mance, quality, and user experience is critical. To create a competitive advantage, businesses are taking a new ap- proach to software development and delivery. This mod- ern approach to application development demands changes to culture, process and technology. Continuous integration, continuous delivery, distributed team, DevOps, microservices and cloud first are all emerging as critical elements for organizations that want to transform their development and deployment organizations. The new generation of software development demands collaboration between developers, operations and secu- rity professionals. Keeping pace with the fast speed busi- ness change and innovation requires flexibility, agility 11

and teamwork across business and technical teams. In this chapter, we will discuss how the demands of modern applications development drive the transition to the cloud and impact cloud development. Impact of next generation development and deployment Modern application development addresses two key is- sues - legacy tools that make it difficult for globally dis- tributed teams to collaborate and organizational silos. Firstly, modern application development decentralizes many tasks in the development and deployment chain. Software services can be developed across the globe and may involve multiple teams each working on a portion of an application. Secondly, there is a need to break down silos across departments within the business. While this decentralized model may seem to be contradictory, the software development revolution taking place today pro- vides developers with the freedom and agility to innovate with a focus on business goals, rather than organizational or functional silos even though teams may be geograph- ically dispersed. Over the past decade, organizations have moved to a cloud-based IT infrastructure to reduce cost, lower ad- ministration overhead and gain flexibility. The early transition to the cloud was mostly focused on costs, how- ever. Today, companies now look to the cloud for a stra- tegic advantage. The cloud gives teams rapid access to a scalable infrastructure that can support a new model of development. The economic benefits of the cloud – in the forms of lower costs, reduced capital investment, and greater flexibility - are undeniable. Yet the growing adop- tion of the cloud among organizations also change both 12

the development and deployment landscapes. For in- stance, when hybrid clouds and/or multiple public clouds are involved, or a single monolithic architecture is de- composed into cloud-based microservices, creating and managing applications and data can turn into very com- plicated tasks. Developers and IT managers will need new tools and ca- pabilities to effectively navigate this terrain. They will need to review and analyze their current datacenters and policies, the relationship among IT, business units, and executive management, and how these factors affect IT decisions. And, more importantly, IT leaders need to reevaluate their current development and deployment practices. They must assess how all of the business and IT stakeholders work together and the processes, tools and technology that can help modernize their business. Forward-looking IT leaders ask questions about how they can create agile and advanced approaches to customer engagement to implement new innovative strategies. They look at new development approaches, and new de- ployment and delivery models, from cross-functional ag- ile teams using cloud-based tools to highly decomposed and distributed applications. In short, insightful develop- ers are moving away from developing monolithic code and applications to creating standards-based business services incorporating agile code and a microservices ar- chitecture. These services can be linked together to cre- ate business value. This is becoming the new normal. Modern applications – customer focused and demand driven Market changes and intensifying competitive forces in- troduce a set of dynamics requiring businesses to adjust 13

in order to stay competitive. These, in turn, drive the changes we see today in how software is developed and managed as businesses move at an accelerated pace. What does this increased competition mean for software development? It requires agility and a software architec- ture developed and delivered with speed and precision. It means software can and will change frequently as the business needs, and competitive and technological land- scape changes. It means that when code is changed, it is then automatically tested, and vetted in small incre- ments. It means services are isolated from the underlying platform, and are independently built by small teams us- ing common tools and development practices. It means that each service will be delivered on an immutable infra- structure using containers - fast, stable and in direct re- sponse to needs of the business, market, and most im- portantly the end-user. As more and more customers rely on next generation mo- bile and web applications to execute and manage trans- actions (purchases, correspondences, shopping, etc.), businesses need to make the customer experience as effi- cient and satisfying as possible. This means customer fac- ing systems must be easy to use; provide access to all functions and capabilities relevant at any point in time. It must be transparent and integrate with other core ser- vices such as billing, sales, etc. All of the services, no matter where they physically reside, need to work to- gether seamlessly. However, there must be a high degree of flexibility so necessary changes can be executed quickly as customer expectations change and competitive threats emerge. 14

Economic incentives of the cloud While we continually talk about innovation and differen- tiation, costs considerations are top of mind with busi- ness management. This is especially true as businesses rely even more on IT to help them differentiate their business and offer a competitive advantage. IT continues to be called upon to “do more with less” in order to build the applications a business requires and to maintain and enhance assets already in products to offer a competitive advantage. Keeping these “development- focused” IT costs in control requires new, more efficient ways to develop applications, modernize existing appli- cations, and manage the environment to ensure high availability and performance. The potentially higher complexity resulting from a more modular, distributed deployment approach, and rapid changes in market and competitive conditions to which developers must re- spond, requires new methodologies and tools to support development efforts. But costs go beyond how develop- ers do their jobs. Many companies, facing the need to ex- pand their IT presence with more systems, storage, and other assets, may quickly find their costs can outstrip their budget. One way to cut costs is to adopt affordable public cloud services that make it possible to implement changes quickly and scale up and down depending on a business’ changing needs. Achieving enterprise agility The new generation of agile application development and deployment means software services can be developed and deployed virtually anywhere. Microservices enable 15

applications to be developed as services linked together through lightweight interfaces. Each service can be de- veloped and deployed by small independent teams. This flexibility provides greater benefits in terms of perfor- mance, cost and scalability. This approach of building services, packaging them together and managing them consistently and predictably, demands a new approach to software development and deployment. Lean, agile development New approaches to software development focus on what is commonly referred to as continuous integration and continuous delivery (CI/CD). Continuous integration fo- cuses on continuously integrating and validating changes, to code and environments to ensure errors are identified and fixed as they are introduced. In contrast, continuous delivery automates the software delivery pro- cess (non-functional testing, functional testing, security, deployment, etc.), ensuring that with each change, the application is release ready. CI/CD allows developers to quickly identify defects as they are introduced so they can be corrected as soon as possible. When application defects are identified close to when they are introduced, it is much faster and cheaper to correct versus having to go back and reexamine the en- tire application. CD is in effect an extension of CI that focuses on the process of delivering changes after they are “committed” as part of the CI process. In other words, software code that passes automated tests can be consid- ered ready for production. Continuous delivery is often used interchangeably with continuous deployment, in which all changes are automatically released to produc- tion. 16

Continuous integration and continuous delivery will be discussed at greater length in Chapter 2. However, if CI/CD is going to be effectively supported, it must be rec- ognized that the two major steps in application develop- ment – development and deployment – cannot be sepa- rated as they were when employing traditional develop- ment models. This is the foundational concept behind the DevOps movement. The new era of DevOps DevOps is a set of cultural principles focused on aligning development and operations (and other stakeholders) around the shared objective of delivering quality software rapidly and reliably. The DevOps culture focuses on col- laboration, and is an extension of agile principles. Rather than defining a rigid methodology or set of development processes, DevOps is focused on breaking down silos be- tween teams. This new era relies on a combination of tools and best practices to accelerate the pace of applica- tion creation and enhancement. The DevOps culture provides organizations a variety of benefits that make it a good match for today’s IT environ- ments. The most obvious is greater quality, resulting from the use of CI/CD concepts that find and correct de- fects early. The use of automation as a mechanism for op- erating and managing infrastructure and development processes makes “managing at scale” more effective. Fi- nally, applications can be developed, changed, and deliv- ered much faster, enabling a faster response to competi- tive conditions and potentially lowering costs. DevOps is one more recent manifestation of an approach to software development known as agile, the principles of which are related to a number of software development 17

frameworks (examples include Scrum and Kanban). The collaborative foundation of DevOps – the focus on cross- functional teams that self-organize and include end users of the software – grew out of these fundamental agile concepts. When agile principles are adopted, individual stakeholders and their interactions through collaboration are more important than adhering to strict methodolo- gies and highly structured tools. The emphasis on speed and agility as a means to respond to rapid change brings the resulting software to the forefront, even if rigorously documenting every process step has to be put on the back burner. Being agile also means the customer – the user of the development effort’s resulting product – is more of a development partner than someone to whom an invoice is sent. Security at the forefront Security is, for obvious reasons one of the most important considerations when developing applications for today’s IT environments. Historically, the data center provided a secure platform at its core, but with a highly distributed software development environment, security now must be considered from the start of the development process. As more IT organizations change their software develop- ment practices to a more agile approach, there is no guar- antee security mechanisms will be in place to provide protection for the new generation of applications. Secu- rity cannot be an afterthought, but rather needs to be built into the new software development methodologies at the beginning of the software creation process. Despite the continued adoption of DevOps processes, un- fortunately security is still often handled traditionally. In many cases, this means that, contrary to the philosophy of a DevOps approach, security is implemented sometime 18

within, or even at the end, of a DevOps process as op- posed to being embedded in the development process at the beginning. A solution to this issue is a discipline known as DevSecOps. In brief, DevSecOps is the process of integrating security into the software development process. DevSecOps begins with a change in culture founded in ongoing learning (to raise security awareness with developers who may already be entrenched in DevOps processes), the identification of security-savvy people within the organization who can champion the change in the security approach, and the empowerment of those working on security to determine how best to embed robust security into the clouds they support. Tools can then be used to automate security testing, detect vul- nerabilities early, and raise security as a gate to blocking forward progress, and even the deployment of a release, if problems are found. Cloud, containers and microservices The change in how the industry approaches software de- velopment can be attributed to the advent of cloud com- puting and the availability of features and capabilities of- fered by cloud providers and tool vendors. In many cases, developers create applications that functionally span an organization’s data center, one or more public clouds, and a variety of platforms and deployment models. With the advent of containerization, for example, applications can be deployed virtually anywhere. The cloud has therefore given rise to a variety of archi- tectures and technologies developers need to use, and tools that support their use. Microservices, as an exam- ple, can facilitate the development of large, complex ap- plications by breaking them down into a set of loosely 19

coupled services. Each service can be developed by a rel- atively small team of developers - or even a single devel- oper - allowing for parallel development that can make the process more efficient and development time shorter in addition to simplifying testing. Microservices in a very real sense serves as an enabler of CI/CD. The decentralized, modular architecture that character- ize many cloud-based implementations have also encour- aged the adoption of containers. Containers provide a means of packaging applications such that they are ab- stracted from their runtime environments. Developers can now spend their energies on creating the application logic and dependencies. Operations can focus only on how and where the logic is deployed and how it is man- aged without worrying about version numbers and appli- cation-specific configuration issues. Containers build on the virtualization concept by virtualizing at the operating system level, allowing for a container – or many contain- ers - to run directly on top of the operating system kernel. These technology advances are driving the following three cornerstones of modern software development. As depicted in Figure 1-1, these cornerstones are: ▪ Standards-based tools that can support highly distributed and flexible architectures based on the hybrid cloud. ▪ The use of microservices, containers and standard APIs to provide a consistent way to achieve mod- ularity and service orientation. ▪ Orchestration and management of services that support flexible deployment and predictable per- formance and reliability. The orchestration of the 20

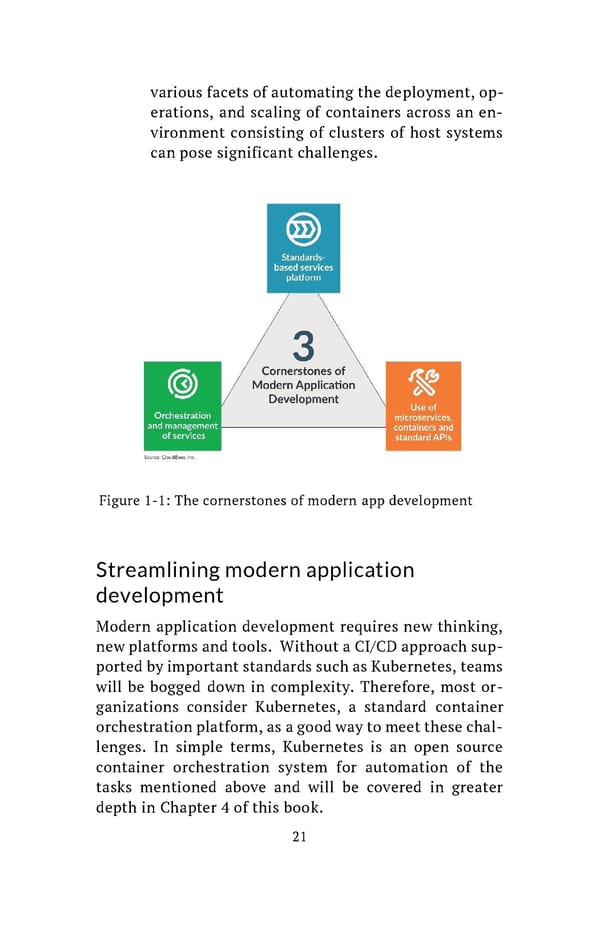

various facets of automating the deployment, op- erations, and scaling of containers across an en- vironment consisting of clusters of host systems can pose significant challenges. Figure 1-1: The cornerstones of modern app development Streamlining modern application development Modern application development requires new thinking, new platforms and tools. Without a CI/CD approach sup- ported by important standards such as Kubernetes, teams will be bogged down in complexity. Therefore, most or- ganizations consider Kubernetes, a standard container orchestration platform, as a good way to meet these chal- lenges. In simple terms, Kubernetes is an open source container orchestration system for automation of the tasks mentioned above and will be covered in greater depth in Chapter 4 of this book. 21

One of the difficulties, however, in implementing Kuber- netes is that it represents what is in essence a “blank sheet of paper” to developers who build and deploy CI/CD focused applications. Many developers are not yet very familiar with how best to create these applications on Ku- bernetes. To be successful, developers need automation to be able to sustain the speed and agility required for modern soft- ware development. The Jenkins X project was initiated to address this issue by providing an automation and ab- straction of the complexities of Kubernetes-native CI/CD platform to help create cloud-native applications. When integrated with Kubernetes, Jenkins X helps developers adopt Kubernetes much more easily. Chapters 5 through 7 of this book will provide a deep dive into Jenkins X. 22

Chapter 2 The Importance of CI/CD in the DevOps Era Inside » Shifting to a continuous everything culture » The role of an opinionated continuous delivery pipeline » The importance of culture when implementing DevOps » Confronting the challenges of CI/CD in the cloud Colliding forces are dramatically impacting the world of software development. Increasingly, businesses are de- fining their value and brand based on customer applica- tions rather than employee-to-customer interactions and fueling the engine of their internal operations with soft- ware versus a manual process. For new businesses to suc- ceed, and for established companies to maintain and grow their position, software development must become the center of the universe. This new model of software development requires the combination of continuous de- velopment speed, agility to change business processes, and a predictable approach to management and security. In this chapter, we will explore the growing importance of continuous integration and continuous delivery as the foundation for application development and deployment. Defining CI/CD While continuous integration and continuous deploy- ment are linked together as though they were a single 23

practice, it is important to understand both of these pro- cesses separately. This section will explain the two pro- cesses, how they relate to each other, and their value in dynamic application development, delivery and deploy- ment. First, we need to understand the four pillars of what is often called continuous everything. Below in Figure 2-1 is a graphic representing the continuous everything methodology. Figure 2-1: A methodology for approaching CI/CD Continuous integration Continuous integration is a software development prac- tice in which developers frequently commit source code changes to a central repository, and the changes are con- tinuously built and validated. This differs from the tradi- tional development process where changes to the code might not be integrated until right before a planned re- lease or at the end of the development cycle. Continuous integration saves time and increases quality because errors are immediately uncovered, closer to the point they were introduced, allowing them to be cor- rected earlier and more easily. 24

Continuous testing To meet the goal of continuous everything, a new ap- proach to testing is needed. Testing should no longer be thought of as a stop along the delivery pipeline. Instead, testing must be an automated part of the continuous de- livery pipeline. By continually testing, you can spot and remedy potential problems at the earliest possible point. Continuous delivery Continuous delivery extends continuous integration principles and practices further downstream in the soft- ware delivery process. With each change, continuously testing and deploying code ensures that software is in a release-ready state. Continuous delivery enables changes to be moved into pre-production or production environ- ments, and eventually into the hands of users, in a rapid, repeatable and reliable way. Table 2-1 below provides an overview of continuous delivery. Table 2-1: The steps in achieving continuous delivery 25

Continuous deployment Continuous deployment is a process where software code changes are automatically deployed into pre-production or production staging. Continuous deployment requires that there is automation along each step of the delivery pipeline. The role of opinionated continuous delivery Starting from scratch with CI/CD is a difficult proposi- tion. As the adoption of continuous delivery practices in- creases at a rapid pace, there is a growing demand for simple solutions that allow developers and development teams to get started quickly. These fast, quick-start solu- tions provide an “opinion” on how continuous delivery should be achieved. An opinionated solution serves as a starting point for teams, without the need for developers to get slowed down by complexity of process design and custom pipe- lines. An opinionated solution is also attractive to small teams and organizations with limited staff or expertise. These smaller, more lean teams need to focus on deliver- ing value, not building and maintaining custom pipe- lines. As we have already noted, continuous delivery is ideally built on a foundation of microservices, containers and other elements that make it possible to modularize appli- cations for flexible deployment across multiple environ- ments including the cloud. It’s important to note that while cloud native applications are where the industry is going, existing assets (applications, tools, and systems) 26

will continue to be part of the mix with which new appli- cations must interact. Once of the most challenging tasks in implementing con- tinuous delivery, is determining the ideal workflow, in- cluding integrations, SCM strategy, environments, gates, etc. This requires a deep knowledge, multiple iterations and manual scripting. What if developers had a tool that could detect a project’s type, and then build a pipeline automatically? What if a developer did not have to di- rectly interact with Kubernetes to deploy an application to a particular environment, but rather have a tool auto- mate that step for them? These are some examples of how the right Kubernetes platform can in effect make or- chestration decisions for developers, freeing them to fo- cus on creating business value through IT. Challenges to CI/CD adoption Despite the obvious advantages and benefits, there are some obstacles to adopting continuous delivery. Some of these obstacles involve human factors, while others are more technical and involve both the legacy of an organi- zation’s technology base, and the tools they use to build and deploy applications. Change always involves risk – or at least a perception of risk. IT likely has processes and techniques in place to build applications, many of which, while manual, repre- sent a known and comfortable approach. The benefits are obvious, but the path to adoption is not comfortable. This discomfort may also be reflected in a skills gap and the time and effort involved in bridging that gap can of- ten be seen as a distraction from what developers know are their deliverables. 27

Additionally, those involved in the software development and delivery process, who are invested in manual steps and gates, often see risk in trusting these steps to auto- mation. Even with the promise of modern approaches and practices, such as microservices and CD, technology, tools, and more importantly, culture can stand in the way. Continuous delivery and the importance of a DevOps culture We have described the process of continuous integration, delivery and deployment. While these practices are rec- ognized as required components of today's face-paced, highly competitive, software-driven market, they require organization-wide changes to how software development and delivery is approached. DevOps, a combination of the terms “development” and “operations,” is an approach to software development and delivery that emphasizes a culture of collaboration to deliver software rapidly, reliably and repeatedly. DevOps is an extension of the agile movement and although it is focused on culture, a major component of DevOps is au- tomation. Achieving the transformation to a DevOps cul- ture requires collaboration and orchestration between all stakeholders, including development, deployment, oper- ations and business teams. The mandate for security Security must be an integral part of the DevOps process. Therefore, it is not surprising to see the emergence of DevSecOps as discussed in Chapter 1. This approach brings the IT security team into the DevOps process. Ra- ther than having an application security team review an application after it has been developed, a DevSecOps 28

methodology integrates the security into every step of the process. Defining the DevOps culture Organizations have discovered through trial and error that a DevOps culture does not just happen. The process of creating the level of teamwork and collaboration re- quires these teams spend the time to build a culture that breaks down technical and organizational silos. Success- ful organizations have discovered a set of best practices for DevOps which includes a focus on outcome, the ability to continuously innovate, delivery value and learning from customer input. The challenge of CI/CD in the cloud era The challenge of creating collaboration between applica- tion development and deployment has been an issue for decades but the rapid growth of the cloud as a foundation for modern software development has upped the sense of urgency. Innovative IT leaders understand the only path to success is through the use of cloud native applications supported by containers and microservices. The mandate for cloud native applications, containers and micro- services can only be successfully implemented with CI/CD based on a DevOps culture. 29

Video Player is loading.

Play Video

Play

Mute

Current Time 0:00

/

Duration 0:00

Loaded: 0%

Stream Type LIVE

Seek to live, currently behind liveLIVE

Remaining Time -0:00



1x

Playback Rate

Chapters

• Chapters

Descriptions

• descriptions off, selected

Captions

• captions and subtitles off, selected

Audio Track

Picture-in-PictureFullscreen

This is a modal window.

Beginning of dialog window. Escape will cancel and close the window.

Text

ColorWhiteBlackRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-Transparent

Background

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-TransparentTransparent

Window

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyTransparentSemi-TransparentOpaque

Font Size

50%75%100%125%150%175%200%300%400%

Text Edge Style

NoneRaisedDepressedUniformDropshadow

Font Family

Proportional Sans-SerifMonospace Sans-SerifProportional SerifMonospace SerifCasualScriptSmall Caps

Reset restore all settings to the default valuesDone

Close Modal Dialog

End of dialog window.

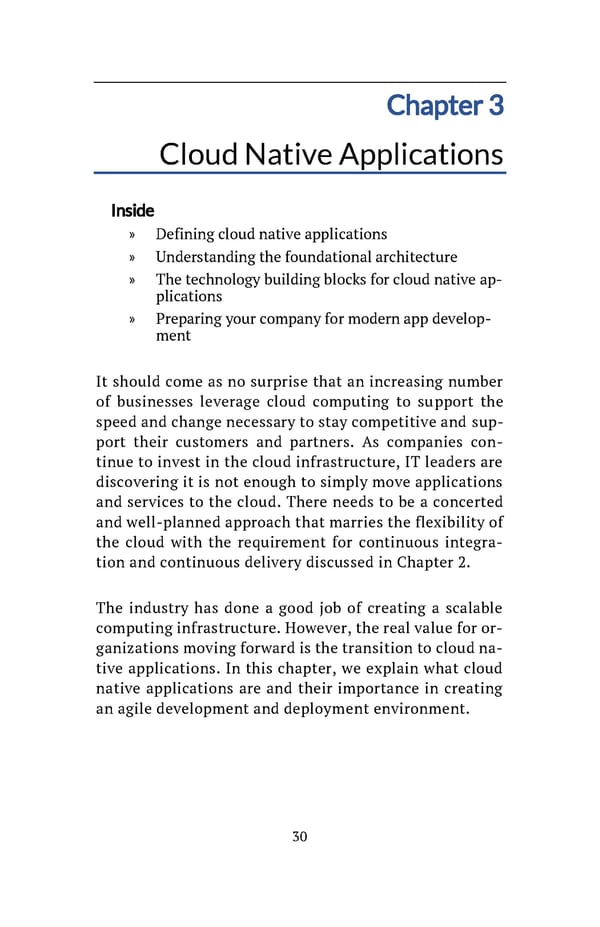

Chapter 3 Cloud Native Applications Inside » Defining cloud native applications » Understanding the foundational architecture » The technology building blocks for cloud native ap- plications » Preparing your company for modern app develop- ment It should come as no surprise that an increasing number of businesses leverage cloud computing to support the speed and change necessary to stay competitive and sup- port their customers and partners. As companies con- tinue to invest in the cloud infrastructure, IT leaders are discovering it is not enough to simply move applications and services to the cloud. There needs to be a concerted and well-planned approach that marries the flexibility of the cloud with the requirement for continuous integra- tion and continuous delivery discussed in Chapter 2. The industry has done a good job of creating a scalable computing infrastructure. However, the real value for or- ganizations moving forward is the transition to cloud na- tive applications. In this chapter, we explain what cloud native applications are and their importance in creating an agile development and deployment environment. 30

Video Player is loading.

Play Video

Play

Mute

Current Time 0:00

/

Duration 0:00

Loaded: 0%

Stream Type LIVE

Seek to live, currently behind liveLIVE

Remaining Time -0:00



1x

Playback Rate

Chapters

• Chapters

Descriptions

• descriptions off, selected

Captions

• captions and subtitles off, selected

Audio Track

Picture-in-PictureFullscreen

This is a modal window.

Beginning of dialog window. Escape will cancel and close the window.

Text

ColorWhiteBlackRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-Transparent

Background

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-TransparentTransparent

Window

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyTransparentSemi-TransparentOpaque

Font Size

50%75%100%125%150%175%200%300%400%

Text Edge Style

NoneRaisedDepressedUniformDropshadow

Font Family

Proportional Sans-SerifMonospace Sans-SerifProportional SerifMonospace SerifCasualScriptSmall Caps

Reset restore all settings to the default valuesDone

Close Modal Dialog

End of dialog window.

Defining cloud native applications As the cloud matures and becomes more sophisticated, it too, evolves to support the way cloud applications are de- fined. This brings us to the value of cloud native applica- tions. In brief, cloud native applications are software of- ferings designed with microservices, containers and dy- namic orchestration as well as continuous delivery of software. Every part of the cloud native application is housed within its own container and dynamically orches- trated with other containers to optimize the way re- sources are utilized. Taking a step back, the concept of cloud native changes the way we think about application creation and manage- ment. The Cloud Native Computing Foundation, an or- ganization founded in 2015 under the auspices of the Linux Foundation, “builds sustainable ecosystems and fosters a community around a constellation of high-qual- ity projects that orchestrate containers as part of a mi- croservices architecture.” The Cloud Native Computing Foundation defines cloud native as follows: ▪ Container packaged. A standard way to package applications that is resource efficient. More ap- plications can be densely packed using a standard container format. ▪ Dynamically managed. A standard way to dis- cover, deploy and scale up and down container- ized applications. ▪ Microservices oriented. This method decomposes the application into modular, independent ser- vices that interact through well-defined ser- vice contracts. 31

Cloud computing requires the infrastructure to be in place to support the needs of continuous integration and continuous delivery. To be successful, developers need some fundamental capabilities including achieving resil- ience, being able to discover reusable services and providing the organization with the ability to scale on de- mand. Achieving resilience It’s critical for cloud applications to adhere to a service level guarantee regardless of where their services run. Historically, cloud services relied on virtual machines tied to a specific server environment. But as more cloud services become customer facing, resiliency is impera- tive. However, with virtual machines (VMs) you cannot assume the VMs or the network services you deploy will be permanent. Too often these VMs will disappear be- cause of a systems error. The consequences can be signif- icant since without any warning your applications may not gracefully shutdown. While it may be possible to re- start the VM, the problem may not be resolved. This means you have to architect for failure and assume that any services you interact with could disappear at any given time. Discovering reusable services Since cloud native applications are designed to take ad- vantage of containers and microservices, it is imperative to be able to locate services that have been vetted so that they can be used in other applications. Therefore, any services your applications interact with need to be found, usually from a runtime registry. 32

Requiring scalability One of the most important benefits of the cloud is the ability to scale your infrastructure as your needs change. With traditional applications hosted in the cloud, the need for resources is typically determined at deployment time. However, as you move to a cloud native approach it is critical to scale horizontally - often called scaling out. The continuous development and deployment environ- ment requires horizontal scalability to function effec- tively. While there are a number of orchestration platforms, Ku- bernetes has emerged as the de facto standard. For more details about Kubernetes, take a look at Chapter 4. In a Kubernetes-based cloud environment where clustering is foundational, horizontal scaling is mandatory for perfor- mance of servers and nodes because it adds more in- stances to spread and balance the load. Moving from VMs to cloud native Cloud computing has evolved significantly over the past decade making it easier for developers to quickly gain ac- cess to compute and storage capabilities and create a platform for applications creation and deployment. Tra- ditionally, developers have relied on virtual machines as a technique to create cloud services. In essence, virtual machine software makes a single system act as though it were a discrete collection of independent services. How- ever, virtual machines sit on a layer of software including the operating system, middleware and tools, which makes the VM more complex and slows down the process of con- tinuous integration and rapid applications development. 33

Creating innovation Optimizing business value means that applications can take advantage of the distributed, scalable architecture the cloud platform provides in order to offer the highest levels of flexibility, scalability and reusability. For a cloud native application, this is where true innovation lies to- day. The cloud native application fully exploits the benefits of cloud technology. It is important to recognize that a cloud native application is not defined by where it is run- ning, but rather how it is built. Because a cloud native environment is based on containerization, it is not phys- ically tied to a specific hardware or operating system. Therefore, cloud native applications are designed to work on a variety of cloud environment. Open source cloud native applications If you are going to adapt an agile continuous integration and continuous delivery model for your cloud applica- tions, you need to explore innovative tools and tech- niques that apply to the full lifecycle of applications cre- ation and deployment. Most of the most important inno- vations in native cloud tools are based on open source technologies from a vibrant community of contributors. For example, the Cloud Native Computing Foundation, focused on projects designed to create and deploy cloud- native applications and services. The foundation’s work has resulted in a number of projects (completed or under- way), including Helm (for package management), Harbor (a registry), and of course, Kubernetes (for container or- chestration). 34

One only has to look at companies including Facebook, Netflix and Twitter that must constantly change their platforms to adapt to changing user expectations. All these companies take advantage of continuous delivery, immutable containers and microservices to help achieve the elastic scaling capabilities needed to cater for an un- predictable competitive landscape. The sense of urgency is palpable: adapt quickly or die. Indeed, Netflix’s transition to cloud native when it spun off a part of its business from the physical DVD rentals to a profitable streaming service is a case in point. After the company suffered from a massive database corruption ep- isode, the service was out of commission for three days. As a result, the company determined it needed a new ar- chitecture that could utilize the horizontal scaling capa- bilities of a public cloud and a microservices approach to software development. Differentiating cloud native applications Traditionally, many organizations considered the cloud because of lower costs – a valid reason, but a limited one. Prior to being able to build cloud native applications, cost savings was often the main driver. Cloud native applica- tions enable businesses to shift from focusing exclusively on cost savings to being able to quickly build applications that bring a competitive advantage. In a highly fluid busi- ness environment, this is critical for success. Cloud native applications are built to run on hardware that is modular and automated, allowing them to become both resilient and predictable. Performance and scalabil- ity become important benefits, resulting from the ability to flexibly deploy workloads wherever they need to be. 35

Traditional applications simply do not offer those bene- fits. The technologies used to create and deploy cloud-ena- bled applications (covered in more detail in the next sec- tion of this chapter) provide an abstraction layer away from the underlying software and hardware infrastruc- tures, including the operating system. Developers can fo- cus exclusively on building their applications without the need to deal with dependencies of the underlying infra- structure. By creating applications that do not rely on the underlying infrastructure, development and deployment teams can deploy applications on the most pragmatic platform. Well-designed cloud native applications automatically provision and configure tasks and can dynamically allo- cate resources based on application requirements. This automation is one way that scalability can be achieved and how applications can balance themselves to prevent failures. While DevOps methodologies are not unique to cloud na- tive application development, DevOps is a necessary component of cloud native applications. The collabora- tion associated with a DevOps approach involves the in- tegration of processes, tools, and of course, developers. DevOps creates an environment in which software can be written, tested and released quickly and as often as needed with minimum disruption. As we noted previ- ously, DevOps can be the enabler of an organization’s CI/CD goals because the software modules created for a cloud native application can be released continuously and in an automated fashion. 36

The foundation of microservices To create true native cloud applications requires differ- ent thinking, collaboration and manageability ap- proaches. Cloud-enabled applications are designed to be modular, distributed, deployed and managed in an auto- mated way. These characteristics require technologies that go beyond what was typical for the development of traditional software. The technologies start with an architectural style that in- corporates the modularity concept. Cloud native applica- tions are built as a collection of multiple, independent microservices. Each of these microservices is designed to support one discrete, bounded piece of application func- tionality. Although these microservices are independent, they can be linked together in a coordinated fashion to provide all the functionality the application is intended to deliver. Microservices provide a number of significant benefits: ▪ Application development is simplified since each microservice is built to serve a specific and lim- ited purpose. Small development teams can fo- cus on writing code for narrowly defined and more easily understood functions. ▪ Code changes will be smaller and less complex than with a complex integrated application, making it easier and faster to make changes, whether to fix a problem or to upgrade a service with new requirements. ▪ Scalability - both up and down - makes it simpler to deploy an additional instance of a service or change that service as needs evolve. 37

▪ Microservices are fully tested and validated. When new applications leverage existing micro- services, developers can assume the integrity of the new application without the need for contin- ual testing. The imperative to manage microservices It’s easy to see how microservices can help organizations fully exploit the advantages of the cloud. Microservices are designed to be packaged within containers that are then managed through orchestration services. These or- chestration services are needed to manage both process and logic as well as data services. In effect, it is a game of numbers – there are often many microservices, and many instances of microservices that are distributed over many systems. Keeping track and consistently documenting of all of these microservices is a challenge. In Chapter 4, we will address the role that Kubernetes plays in managing microservices. Supporting technologies for cloud- enabled applications Cloud-enabled software is generally built using contain- ers, which are software elements packaged with every- thing needed to execute it - an application’s code, the runtime environment, required system tools and libraries and settings. Each container runs in a virtualized envi- ronment, but completely isolated from the underlying in- frastructure. A container’s abstraction makes it possible to port the service to virtually any system. Containers can be spun up or down based on the user load present at any given 38

time. Clearly, containers are a critical foundational ele- ment for building and running cloud-enabled applica- tions. The role of APIs Of course, in a highly distributed environment composed of microservices, the ability to communicate between services is critical if the benefits of the cloud are to be fully realized. Application programming interfaces (APIs) serve this purpose and have special applicability to the cloud. In fact, they are the mode of communication among microservices and containers using inter-process communication mechanisms. APIs have been used extensively in the past for communi- cating with and connecting various IT assets. They are an important connectivity mechanism for the way services are combined to create an application. In addition, at the Infrastructure as a Service (IaaS) level, APIs are used to provide control and distribution mechanisms for re- sources such as provisioning, for example. At the appli- cation level Software as a Service (SaaS) APIs furnish the ability to connect applications with the underlying infra- structure and, when applicable, cloud resources. APIs become even more critical when one or more cloud providers are involved. In these multi-cloud cases, your API strategy needs to consider the APIs provided by the cloud providers themselves to allow connectivity and communication with their clouds. Many cloud providers are offering more generic (e.g., HTTP) integration capa- bilities to make it easy for their customers to integrate and access resources. 39

With microservices typically deployed in the form of con- tainers, the inter-process communication mechanisms used with microservices are different from traditional ap- plications. Because the microservices are more granular, so too are the APIs. This means client data requests may span a number of microservices, requiring the request to follow a “one-to-many” form of interaction. A number of API platforms, including API management platforms, are available today that address a variety of needs in the cloud. Choosing the right API platform in- volves a careful assessment of the application environ- ment. Setting the stage for cloud-enabled applications For many organizations, enabling applications for the cloud is a journey, which in many cases begins with the obvious step of setting a vision and goals. Establishing business objectives is an important first step, since there is a tendency to look at exciting technologies before fig- uring out direction and what specific business goals need to be achieved. Additionally, planning should involve all stakeholders – corporate management, IT, partners and even customers. Once goals are set, a team of development, security and operations personnel needs to be created that can take the cloud application implementation to the next level using a DevSecOps approach. One of the first decisions this team will face is which workloads represent the high- est priority in terms of cloud-enablement – and this holds true for both legacy and new, more modern applications some of which need to be created. The team will need to 40

consider a number of factors, including business critical- ity and technical complexity and difficulty. Overall, workloads need to be assessed and prioritized based on business requirements and financial return on invest- ment considerations. Business services will then need to be defined based on the required application functionality. Decomposing an application into a set of microservices follows no set rules. In general, however, examining the specific ser- vices and how they interact “outward” (to customers and other stakeholders), and “inward” (with internal and back office services), and dividing functionality will be based on the most efficient way to orchestrate these interac- tions. Interacting with back end systems is particularly important, since in some cases, containerization may not be a viable option. There are a variety of container platforms available in the marketplace – some are open source. In addition, some container platforms are offered by vendors who add value in terms of ease of use and scalability. The careful exam- ination of current and future needs will play into deter- mining the right platform to use. Finally, the role of operations will change where cloud- enabled applications prevail. We’ve seen that cloud ena- blement can add complexity and pose management chal- lenges, but also create great opportunity to exploit the cloud. Kubernetes as a management and orchestration system for cloud native applications built with containers is a way to effectively get the most out of a distributed, modularized application implementation. 41

Chapter 4 The Power of Kubernetes Inside » Understanding the importance of containers » Defining the value of microservices » The advantages of Kubernetes » The technical building blocks of Kubernetes Kubernetes has become the industry standard cloud plat- form supported by every major cloud provider. Based on an open source architecture, this container orchestration platform provides a powerful foundation. In this chapter we will explore why Kubernetes is so important and the elements that are included to support portability and manageability of a container environment. We will define containers and the role Docker and microservices play in the overall container environment. Finally, we will get into the details about the elements of the Kubernetes platform. Defining containers A container is an image based on a lightweight executable collection of software elements that are packaged with all of the software needed to run the workload, regardless of the environment of origin. One of the benefits of contain- ers is that they provide a software environment that brings all the elements needed to run a piece of code to- gether into a filing system. 42

The container can include the runtime services, system tools and libraries. These services are brought together into a filing system so that they can be installed on a server or on the cloud. The benefit of the container is that it ensures the software will consistently and predictably run on any environment. In addition, a container makes it easy to create a self-healing and auto-scaling process. Unlike a virtual machine, the container does not require an operating system, and software environment services. On the other hand, a virtual machine communicates through a hypervisor on a shared physical hardware envi- ronment. A VM must contain its own operating system and does not get direct access to its host’s resources. Therefore, a container has a much smaller footprint when compared to a virtual machine. Rather than requiring a copy of the operating system, a container utilizes the host’s operating system. Available for both Linux- and Windows-based applica- tions, containerized software will always run the same way, regardless of the environment. Containers isolate software from its surroundings such as differences be- tween development and staging environments, and helps reduce conflicts between teams running different soft- ware on the same infrastructure. The value of microservices Before we get into the details of containers and Kuber- netes, it is important to understand the importance of microservices - one of the architectures that is core to the value of containers. 43

The idea of creating business services without dependen- cies has been the goal of modern software development for decades. In the past, developers tried to create small software elements that could be grouped together to cre- ate larger applications. In many cases, these services were simply too numerous and too granular. The alterna- tive was to encapsulate existing monolithic code as a ser- vice. Neither of these approaches worked well. In contrast, microservices is a process of developing ap- plications that consist of code that is independent of each other and of the underlying developing platform. Once created, each microservice runs a unique process and communicates through well-defined and standardized APIs. These services are defined in a catalog so that de- velopers can more easily locate the right service and un- derstand the governance rules for usage. To create an application, a variety of microservices need to be managed and linked together. Microservices are de- signed to be linked together to create a business process. Because these services are modular, it is much easier for developers to change a service as the business process changes. Microservices separate business logic functions into smaller application services that can communicate over standard HTTP. In essence, microservices isolates faults and exceptions so that if one service fails, the entire ap- plication doesn’t fail. An example of a microservice is au- thentication. A team could build, test and publish an ac- cess and identity microservice. The access and identity microservice could then be utilized across teams rather than each project needing to develop their own authenti- cation method. 44

With every benefit comes some complexities. A group of microservices must be logically linked together and or- chestrated. This requires overhead to support the orches- tration. The solution to the complexity of orchestration and management of microservices is Dockers and Kuber- netes. We will discuss both offerings in our next sections. The role of Docker Docker, an open source container technology was intro- duced in 2013 and has become the de facto container standard. At the core of Docker’s open source container technology, is an engine that helps developers create, ship and run the application containers. Docker provides an environment to support services including a registry that stores, distributes and shares container images. These containers can run on any deployment environ- ment including on-premise data centers and private clouds as well as virtual machines and public clouds. Un- like a virtual machine, the container does not require an operating system. Docker enables developers to create, ship and run the application containers. The resulting Docker images files are very small which helps reduce overhead and improves performance. The benefits of Docker include: ▪ Isolate processes into their own namespace. Docker makes it easier to start and stop pro- cesses and have persistence within the con- tainer. ▪ Registry of images that are managed in an image cache. Docker offers a consistent way to manage images so they can be built on the fly and then be automatically pushed into the registry. 45

▪ Configuration management complexity is made easier. ▪ Build management helps developers spin up a virtual image in a simple and fast way. Defining Kubernetes If microservices are the content, and docker containers are the wrapper, then Kubernetes is the way the contain- ers are orchestrated and managed in a hybrid cloud envi- ronment. Google open sourced the Kubernetes project in 2015. Today, Kubernetes builds upon a decade and a half of experience that Google has with running production workloads at scale, combined with best-of-breed ideas and practices from the community. Kubernetes is a portable, extensible open source platform for managing containerized workloads and services. Ku- bernetes is optimized to support all infrastructure plat- forms, from virtual machines to bare-metal. The technol- ogy is designed to support both stateful and stateless ap- plications. Kubernetes abstracts each individual infra- structure platform and supports cluster federation and auto-balancing across hybrid clouds. Kubernetes facili- tates both declarative configuration and automation. Because Kubernetes has such a large open source contrib- uting community, the platforms supports a large and rap- idly growing ecosystem of tools and services including Prometheus for monitoring, Istio for service meshes, Kaniko for building containers and Open Tracing for dis- tributed tracing. 46

One of the benefits of Kubernetes is that it standardizes the orchestration of container services. It provides a plat- form for automating the development, scaling and oper- ation of systems across a cluster of hosts. In addition, some of the primary benefits of Kubernetes include: ▪ Standardized way to build, package, deploy and run applications of any language ▪ Portability across multiple cloud providers and the ability to avoid vendor lock-in ▪ Horizontal auto scaling so that additional pods are created as application demand increases ▪ High availability through continual health checks to make ensure that nodes and containers are op- erating as expected ▪ Automated rollouts to updated applications or its configurations without causing downtime Kubernetes provides tools for application deployment, service discovery, scheduling, updating, maintenance and scaling. Kubernetes is extensible so that it can sup- port a variety of use cases across many different imple- mentations. Therefore, Kubernetes is architected to sit on top of the physical infrastructure. Like most platforms, Kubernetes has a built-in set of ru- dimentary tools that allow you to monitor your servers. The term "built-in" may be a little bit of an overstate- ment. Given the extensible nature of Kubernetes, it is possible to add additional components to gain visibility into Kubernetes. For example, Custom Resource Defini- tions (CDR) are the way to extend Kubernetes and still 47

leverage capabilities from the platform. CDR extends the API so that additional services can be added to the clus- ter. Before we get into the details of the physical Kubernetes clusters, it is instructive to understand the logical or ap- plication view of Kubernetes clusters. Figure 4-1 shows how a Kubernetes deployment is organized in a hierachi- cal fashion. For example, all of the containers run inside of pods which are a set of one or more containers that reside to- gether. The pods sit behind services like load balancing. Furthermore, services are scaled by ReplicaSets that can spin up or delete pods as they are needed. The namespace is a virtual cluster that can include one or more services. Figure 4-1: The logical view of how a Kubernetes cluster is deployed 48

Elements of Kubernetes To support a variety of environments and requirements, Kubernetes includes a variety of services that enable the orchestration of containers. In this section, we will take a close look at each of these elements that is important for creating a sophisticated continuous integration/con- tinuous delivery (CI/CD) environment. Master node One of the main functions of Kubernetes is to manage workloads. On a conceptual level, Kubernetes is made up of a bunch of nodes with different roles. The control plane on the master node(s) consists of the API Server, the Controller Manager and Scheduler(s). The Master Node is designed to make these workloads highly availa- ble. Therefore, the master node manages an abstracted control plane that includes the API server, controller manager server, and etcd (we will define each of these el- ements below). Think of the master node as the stage manager for all the services that are needed to manage containerized applications. The master node manages application services across a set of containers or hosts and provides mechanisms for deployment, maintenance and application scaling. A Kubernetes cluster consists of one or more masters and a set of nodes. The master can be configured to support High Availability (HA) so there is no single point of failure. In addition, the master is re- sponsible for managing all of the nodes within the Kuber- netes cluster and then schedules pods to run on those nodes. Worker node The master node handles and manages the cluster but it does not actually run any containers. Instead, the worker 49

node runs the Docker container. Depending on the design of the cluster, a worker node can be either a virtual ma- chine or a physical machine. Each worker node includes all of the services needed to run pods (or a cluster of con- tainers). It is managed by the master node. These nodes do not have a public IP address and therefore process data on the node and report resources to the master node. API server The API Server manages the entire cluster by processing REST operations, validates them, and updates the corre- sponding objects in etcd. One important function of the API Server is to authentication and authorization of the interactions with the API clients. The Kubernetes API server is designed to validate and configure the data for pods, services and replication con- trollers. In addition, the API server assigns pods (or a group of containers) so they can be deployed as a unit on the same host) to the cluster of nodes. At this point, the API server synchronizes the container group information with service configuration. The API Server is the central manager that communicates directly with distributed storage and can manipulate the state of services. Etcd storage Managing clusters across distributed systems is compli- cated. Etcd is an open source distributed key value store that provides shared configuration and service discovery for container Linux clusters. Etcd replicates the state data across all nodes in the cluster, preventing a single node failure from bringing down the whole group. Etcd runs on each machine in a cluster and gracefully handles leader election during network partitions and the loss of the 50

current leader. Etcd stores the persistent master state while other components watch etcd for changes to bring themselves into the desired state. In order to asynchronously monitor changes to keys, etcd includes a watch feature. If a key is changed, the watcher is notified so that the right business logic is updated to its desired state. Scheduler This component watches the API for unscheduled pods, then finds a machine for them to run and informs the API server of the best choice. The job of the scheduler is to make sure that resources needed are available. For exam- ple, there might be low memory or not enough disk space. The scheduler can look for another pod that can handle the task. Controller manager The controller manager server watches etcd for changes to replication controller objects and then uses the API to enforce the desired state. Several such processes create a cluster with one active leader at a time. Kubelet The kubelet is the lowest level component in Kubernetes and is responsible for knowing what is running on each machine. Therefore, the kubelet has a single task: it keeps a set of containers running. It is basically an agent on the node that actually starts and stops containers and com- municates with the Docker engine at a host level. The kubelet interacts with the API Server and watches to make sure that pods are bound to its node and are 51

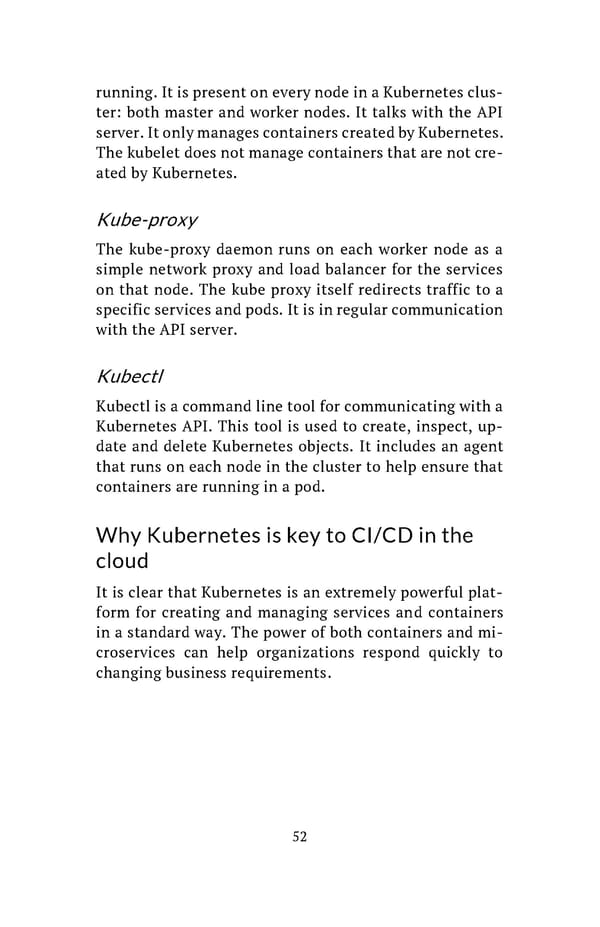

running. It is present on every node in a Kubernetes clus- ter: both master and worker nodes. It talks with the API server. It only manages containers created by Kubernetes. The kubelet does not manage containers that are not cre- ated by Kubernetes. Kube-proxy The kube-proxy daemon runs on each worker node as a simple network proxy and load balancer for the services on that node. The kube proxy itself redirects traffic to a specific services and pods. It is in regular communication with the API server. Kubectl Kubectl is a command line tool for communicating with a Kubernetes API. This tool is used to create, inspect, up- date and delete Kubernetes objects. It includes an agent that runs on each node in the cluster to help ensure that containers are running in a pod. Why Kubernetes is key to CI/CD in the cloud It is clear that Kubernetes is an extremely powerful plat- form for creating and managing services and containers in a standard way. The power of both containers and mi- croservices can help organizations respond quickly to changing business requirements. 52

Video Player is loading.

Play Video

Play

Mute

Current Time 0:00

/

Duration 0:00

Loaded: 0%

Stream Type LIVE

Seek to live, currently behind liveLIVE

Remaining Time -0:00



1x

Playback Rate

Chapters

• Chapters

Descriptions

• descriptions off, selected

Captions

• captions and subtitles off, selected

Audio Track

Picture-in-PictureFullscreen

This is a modal window.

Beginning of dialog window. Escape will cancel and close the window.

Text

ColorWhiteBlackRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-Transparent

Background

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-TransparentTransparent

Window

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyTransparentSemi-TransparentOpaque

Font Size

50%75%100%125%150%175%200%300%400%

Text Edge Style

NoneRaisedDepressedUniformDropshadow

Font Family

Proportional Sans-SerifMonospace Sans-SerifProportional SerifMonospace SerifCasualScriptSmall Caps

Reset restore all settings to the default valuesDone

Close Modal Dialog

End of dialog window.

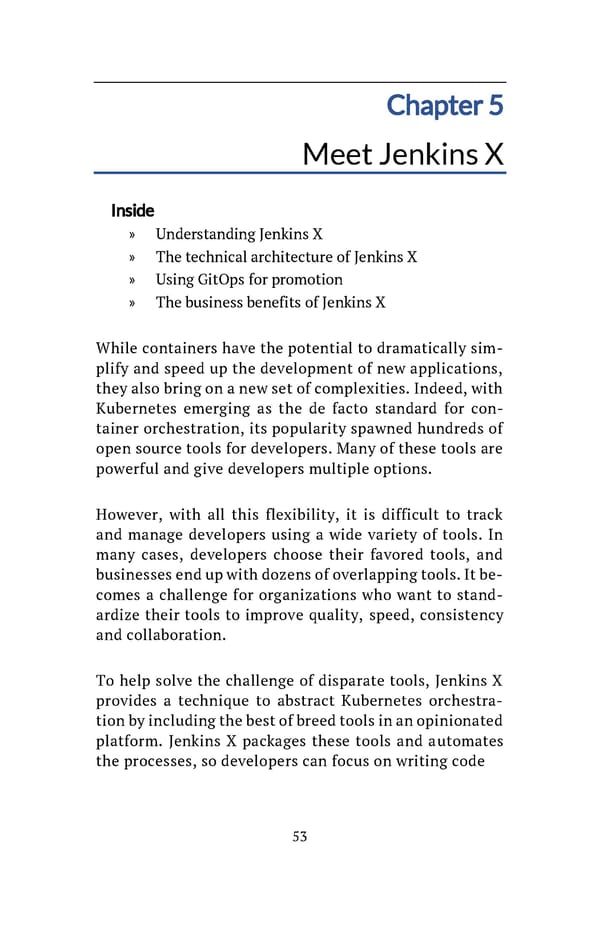

Chapter 5 Meet Jenkins X Inside » Understanding Jenkins X » The technical architecture of Jenkins X » Using GitOps for promotion » The business benefits of Jenkins X While containers have the potential to dramatically sim- plify and speed up the development of new applications, they also bring on a new set of complexities. Indeed, with Kubernetes emerging as the de facto standard for con- tainer orchestration, its popularity spawned hundreds of open source tools for developers. Many of these tools are powerful and give developers multiple options. However, with all this flexibility, it is difficult to track and manage developers using a wide variety of tools. In many cases, developers choose their favored tools, and businesses end up with dozens of overlapping tools. It be- comes a challenge for organizations who want to stand- ardize their tools to improve quality, speed, consistency and collaboration. To help solve the challenge of disparate tools, Jenkins X provides a technique to abstract Kubernetes orchestra- tion by including the best of breed tools in an opinionated platform. Jenkins X packages these tools and automates the processes, so developers can focus on writing code 53

and building the application. In this chapter, we will ex- plore the elements of Jenkins X; in Chapter 6, we will cover how to get started with Jenkins X. What is Jenkins X? Jenkins X is an open source project designed to help ac- celerate the creation of cloud native applications by hid- ing the complexities of Kubernetes for CI and CD services. It comes with all the automation capabilities required by developers so that they can focus on writing the applica- tion code. For example, Jenkins X automates releases with semantic versions and creates artifacts, Docker im- ages and helm charts. It also automatically promotes ver- sioned artifacts across the environment via GitOps. Jenkins X automates the processes by providing a wrap- per around Kubernetes. Jenkins X can leverage any source code and it doesn’t care if you are using a traditional mid- dleware. In other words, Jenkins X simply doesn't care what services are running under the covers. Jenkins X provides a platform that enables the developer to preview the environment. Team members can review changes be- fore they are committed into production. The result is that testing is performed throughout the development process. The architecture of Jenkins X allows it to work seamlessly with any third party cloud including Amazon AWS, Microsoft Azure, Google Cloud, Red Hat OpenShift, or IBM Cloud. The importance of microservices The world of application development has moved from an era of writing large, monolithic applications to building applications made up of individual containerized micro- services. 54

The biggest challenges with containers are managing, scaling and load balancing while also making sure they run as intended. As the complexity of your environment increases, you can quickly have thousands of containers that need to be consistently managed. This is where Ku- bernetes steps in. Kubernetes is a container orchestra- tion, management and automation platform. However, like other platforms, Kubernetes requires specialized knowledge on how to work within the environment. As we discussed in Chapter 4, Kubernetes is a complex cloud container architecture that requires automation to sup- port a CI/CD solution. What makes Jenkins X different than other options to support CI/CD in the cloud? Jenkins X is an opinionated platform. Rather than dealing with complexities at the code level, Jenkins X selects a set of core services and tools that are pre-installed and wired together so that de- velopers can more easily begin developing applications. Jenkins X Sits on the Shoulders of Jenkins Jenkins X began where Jenkins left off. Jenkins was an open source project developed in 2004 and released in 2005 on java.net well before the cloud became the development platform of choice. Jenkins helped automate the non-human part of the software development process, with continuous integration and facilitating technical aspects of continuous delivery. The project, originally called Hudson was renamed Jenkins in 2011. The Jenkins community has become very active. Over the last ten years, more and more developers rely on Jenkins as a foundation for on premises continuous integration and continu- ous deployment for their applications. Jenkins X provides the same foundation of automation and ex- tensibility that has made Jenkins so important to developers. 55

Jenkins X architecture Jenkins X automates the installation, configuration, and upgrade tasks for a variety of important development, de- ployment, container and security tools. It includes three important elements to help accelerate the DevOps pipe- line: Helm, Prow and Secrets. In this section we will dis- cuss these important tools and technologies. The continuous automation imperative Jenkins X performs the backend automation so that de- velopers can begin creating applications without first setting up the environment by hand. In general, rapid, re- liable and repeatable delivery of cloud native applica- tions require developers to be cognizant of: ▪ CI/CD (principles, pipelines, tools, and technol- ogy) ▪ Cloud native concepts (architecture/micro- services, technology, principles etc.) ▪ Containers ▪ Kubernetes/container orchestration It may take weeks or even months for a team of develop- ers to teach themselves about these topics and then build the applications. Instead, Jenkins X provides developers and small teams a guided solution for delivering cloud native apps on Kubernetes using CI/CD practices. A key component to Jenkins X is automation throughout the platform. Jenkins X is designed to continuously auto- mate every aspect of Kubernetes from the installation 56

and configuration of tools to keeping individual tools current. Jenkins X includes a single jx command line that is the entry point for getting started to create a Kuber- netes cluster. The environment is architected so that each team has its own instance of Jenkins X. With these individual instances, each team is able to see their own pipelines in the user interface. This approach means that each team has its own Kubernetes-built pods (individual or multiple containers). In this way, teams can operate at their own pace and don’t have to line up behind the entire organization’s application pipeline. Core elements of Jenkins X and supported tools As an opinionated platform, Jenkins X contains a number of elements designed to help accelerate CI/CD on Kuber- netes. These elements include: Helm. A package manager for Kubernetes that allows teams to more easily install and upgrade applications. Helm uses Helm Charts to help developers define, in- stall and upgrade Kubernetes applications. Prow. Prow is a collection of utilities used to interact with Git events and schedule build engines. Compo- nents include a scalable webhook event handler, auto- mated pull request merger and many plugins to aid a developer’s experience. Secrets. Most applications contain configuration files that handle passwords and other confidential infor- mation in the completed application. Jenkins X con 57

tains a helm wrapper called helm secrets. The helm se- crets wrapper contains all of the needed components in a single package. In addition to the core elements, Jenkins X automates the installation, configuration and updates to a variety of open source tools such as: Skaffold. Skaffold is a command line tool that facili- tates continuous development for Kubernetes applica- tions. With Skaffold, developers can iterate an appli- cation’s source code locally while having it continu- ally updated and ready for validation or testing in their local or remote Kubernetes clusters. Jenkins. Jenkins is an open source continuous integra- tion software tool written in the Java programming language for testing and reporting on isolated changes in a larger code base in real time. The software enables developers to find and solve defects in a code base rap- idly and to automate testing of their builds. Monocular. Monocular is a user interface designed to discover and run Helm charts. Nexus. Nexus   is a dependency cache for Nodejs and Java applications designed to improve build times. Docker. Dockers are open source containers. ChartMuseum. ChartMuseum is a registry for publish- ing Helm charts. 58

KSync. KSync is a tool that synchronizes files between a local system and a Kubernetes cluster. The native support and automation surrounding these tools is designed to allow developers the ability to focus on building applications and creating high-quality code rather than focusing on individual tools. Understanding GitOps and environment promotion GitOps is an iteration of a DevOps process designed for cloud native with a focus on Kubernetes. Code managed in Git, makes it easier to track and recover when managed independently of Kubernetes. Continuous delivery ap- proaches for Kubernetes often rely on technologies such as Jenkins. The value of GitOps is the ability to collaborate in a de- clarative environment so that the multiple components within a microservices environment can be managed. GitOps enables the developers to manage and monitor all of the applications and the entire cloud native stack. With GitOps it is much easier for the developer to learn and manage complex Kubernetes clusters. One of the greatest benefits of GitOps is that it acts a uni- fied “source of the truth.” Version control, history, peer review and rollbacks all are managed within the GitOps environment. This is important when it comes to Jenkins X. 59

As already mentioned, within Jenkins X, each team gets their own environment. An environment is a place to de- ploy code and each environment maps to a separate namespace in Kubernetes so that they are isolated from each other and can be managed independently. GitOps manages the environments and performs the promotion. What does promotion mean? Each environment gets its own Git Repository to store the entire environment-spe- cific configuration together with a list of all the applica- tions and their version and configuration. Promotion of new application versions results in the following: ▪ Pull Request is created for the configuration change that triggers the CI pipeline tests on the Environment along with code review and ap- proval. ▪ The Pull Request is merged with the release pipe- line for the environment that updates the appli- cations running in that environment by applying the helm chart metadata from the git repository. Streamlining software development while improving quality Businesses and the developers supporting changing busi- ness needs want to adopt lean practices and processes so that development is streamlined. The emergence of the cloud means that development processes must be fast and practical. While at the outset this may sound straightfor- ward, in a highly distributed multi-cloud computing en- vironment there are many moving parts. 60

The new world of software creation requires that software is developed as modular components that are constantly being tested and used in a variety of situations. These software elements have to be tested, integrated with other services and then put into deployment. However, this is not a static process. Developers are re- quired to ensure that changes and new services work as anticipated and don’t create new problems. It is incum- bent on the development team to create a DevOps envi- ronment that can cope with complexity and change. Mov- ing forward, development teams have to work as one with the operations group in order to create new cloud native applications that scale and change as new services are added. Why businesses need Jenkins X Businesses across the globe are increasingly relying on cloud computing, and not just for compute, storage or software as a service. Rather, technologists are looking at cloud services as a way to rapidly innovate their soft- ware without constraints. With cloud infrastructure and services, developers can experiment without putting their company’s business at risk. Developers have the freedom to innovate without being limited by existing legacy applications and infrastructure. Likewise, busi- ness leaders can develop new business models, pilot them in near real time, fail without consequences, and create innovation to develop new revenue streams. So, why does an organization need Jenkins X to achieve these business and technical goals? It is increasingly clear that both Kubernetes and microservices help enable a continuous integration and continuous development and deployment environment. The irony is that speed and 61

flexibility come at a cost. You need to be able to be sup- ported by a set of frameworks and models that allow you to move fast but in a predictable and manageable way. Not every organization can afford to hire developers deeply knowledgeable about advanced DevOps environ- ments. Rather, it is important to provide developers with the tools that can make it easier for them to take ad- vantage of the latest innovations in software develop- ment in the cloud. This is where Jenkins X comes in. Jenkins X allows developers to focus on building excellent user experiences and innovative applications rather than creating underlying environments that do not create business differentiation. Smart businesses want their de- velopers to focus as much time as possible on creating great applications rather non-differentiating tooling. The commercialization of Jenkins X open source Like Jenkins, Jenkins X is an open source offering and en- joys a growing community. As we have seen with other open source tools and environments, the technology be- comes more common in production applications in which IT leaders demand enterprise-level features and direct support. When open source tools are used in business critical ap- plications, many businesses have a requirement for en- terprise support. While open source software projects have frequent updates and are community supported, they typically require sophisticated developers to “go it alone” when they run into new challenges or are trying to integrate the open source tool into their existing envi- ronment. By contrast, enterprise-supported versions are 62

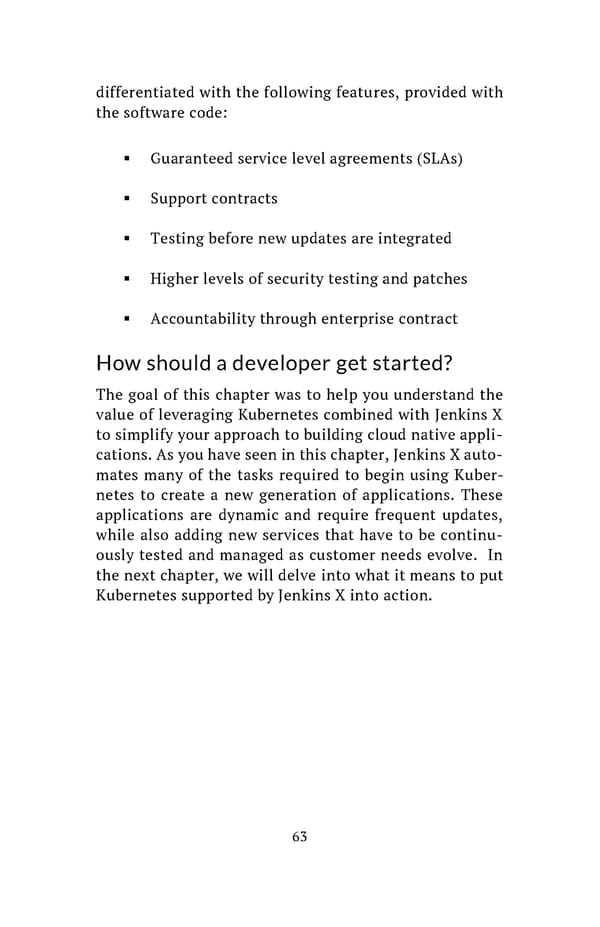

differentiated with the following features, provided with the software code: ▪ Guaranteed service level agreements (SLAs) ▪ Support contracts ▪ Testing before new updates are integrated ▪ Higher levels of security testing and patches ▪ Accountability through enterprise contract How should a developer get started? The goal of this chapter was to help you understand the value of leveraging Kubernetes combined with Jenkins X to simplify your approach to building cloud native appli- cations. As you have seen in this chapter, Jenkins X auto- mates many of the tasks required to begin using Kuber- netes to create a new generation of applications. These applications are dynamic and require frequent updates, while also adding new services that have to be continu- ously tested and managed as customer needs evolve. In the next chapter, we will delve into what it means to put Kubernetes supported by Jenkins X into action. 63

Video Player is loading.

Play Video

Play

Mute

Current Time 0:00

/

Duration 0:00

Loaded: 0%

Stream Type LIVE

Seek to live, currently behind liveLIVE

Remaining Time -0:00



1x

Playback Rate

Chapters

• Chapters

Descriptions

• descriptions off, selected

Captions

• captions and subtitles off, selected

Audio Track

Picture-in-PictureFullscreen

This is a modal window.

Beginning of dialog window. Escape will cancel and close the window.

Text

ColorWhiteBlackRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-Transparent

Background

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-TransparentTransparent

Window

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyTransparentSemi-TransparentOpaque

Font Size

50%75%100%125%150%175%200%300%400%

Text Edge Style

NoneRaisedDepressedUniformDropshadow

Font Family

Proportional Sans-SerifMonospace Sans-SerifProportional SerifMonospace SerifCasualScriptSmall Caps

Reset restore all settings to the default valuesDone

Close Modal Dialog

End of dialog window.

Chapter 6 Kicking the Tires of Jenkins X Inside » Recognizing the value of Kubernetes » Getting started with Jenkins X » Deploying Jenkins X in the enterprise Jenkins X is a critical tool that offers developers a level of abstraction for building and deploying cloud native apps with Kubernetes. In this chapter we will discuss what it means to put Jenkins X into practice. We’ll start with the basics. Kubernetes adoption As we discussed in Chapter 4, Kubernetes has become the de facto standard for managing and orchestrating con- tainers and is changing everything when it comes to de- veloping cloud native applications. As Kubernetes be- comes embraced by a large number of vendors and cus- tomers, there is a growing ecosystem of tools available for the environment. How does a developer know which tools to select? How does a developer bring these tools together to be able to create a project that meets the needs of their CI/CD pipeline? As we discussed in Chapter 5, Jenkins X was designed to bring together the best of breed tools into a framework to help you move quickly in developing, testing, implementing and deploying appli- cations for the cloud. 64

Getting started When developers begin working with Kubernetes, they are often confronted with a daunting level of complexity. To start using Kubernetes, developers need to spend time learning about the platform and its capabilities. Jenkins X helps to flatten the learning curve of Kubernetes by adding automation and hiding the complexities of creat- ing a Kubernetes environment so that developers can get started quickly. So, how do you get started? To begin the process of using Jenkins X requires installing a number of programming constructs. In the next section, we will dis- cuss the steps in using Jenkins X to establish your envi- ronment. Setting up a Kubernetes cluster Your first step is to download and install the jx command line tool. Depending on your operating system you will use a different set of instruction. The jx command will automatically create a new Kubernetes cluster, installing required local dependencies and provisions on the Jen- kins X platform. These clusters work across a variety of cloud providers environments including Amazon AWS, Microsoft Azure, Oracle Cloud, Google Cloud, as well as custom Kubernetes clusters. If you would like to see a demo of the command take a look at this link: https://jenkins-x.io/demos/create_cluster/ Creating a quickstart A quickstart provides the developer with a command line interface (CLI) for creating a Kubernetes cluster. When you want to begin creating a new application, it is sensi- ble to use a quickstart, a pre-made application rather than starting from scratch. Jenkins X includes a curated 65

set of quickstart applications that can be accessed through the jx create quickstart command. ($ jx cre- ate quickstart). You are then prompted for a list of quickstarts to choose from. Once you have chosen the project to create and given it a name the following tasks are automated: ✓ Creates a new application from the quickstart in a sub directory. ✓ Adds your source code into a git repository. ✓ Creates a remote git repository on a git service, such as GitHub. ✓ Pushes your code to the remote git service. ✓ Adds default files: ✓ Dockerfile to build your application as a docker image. ✓ Jenkinsfile to implement the CI/CD pipeline. ✓ Helm chart to run your application in- side Kubernetes. ✓ Registers a webhook on the remote git repository to your team’s Jenkins. ✓ Adds the git repository to your team’s Jenkins. ✓ Triggers the first pipeline. Once you have created a quickstart, you can use either jx create spring or jx import. At this point the Jenkins X build packs are used to: 66

▪ Find the right language pack. A few language pack examples include PHP, Ruby, Swift, and Python along with many others. ▪ The language pack is then used to default these files if they don't already exist: o Dockerfile to package the application as a docker image. o Jenkinsfile to implement the CI/CD pipe- lines using declarative pipeline as code. o Helm charts to deploy the application on Kubernetes and to implement Preview En- vironments. Importing a project You may already have source code that you want to im- port into Jenkins X. In order to execute on the import pro- cess, you can use the jx import command (cd my-cool- app $ jx import). This command will perform the follow- ing actions: ✓ Add your source code into the git repository. ✓ Create a remote git repository on a git service, such as GitHub. ✓ Push your code to the remote git service. ✓ Add any required files to your project (Dock- erfiles, Jenkinsfiles, helm charts). ✓ Register a webhook on the remote git repository to your team’s Jenkins. ✓ Add the git repository to your team’s Jenkins. ✓ Trigger the first pipeline. 67

Build packs and overriding values Jenkins X offers a number of different kinds of build packs for projects including Go, Node.js, and Spring Boot. In es- sence, build packs are quickstarts for creating Kubernetes clusters. While it is typical to allow Jenkins X to automatically per- form the standard setup, there are times when you will need to override a pre-set configuration. The override function is a feature of Helm that allows de- velopers to override standard configurations. For exam- ple, you may have an application running in a staging en- vironment. If it is in this staging environment, you do not need the application to be highly available. However, when you are ready to move that application into produc- tion it must be highly available so you will want to change the availability level. This overriding will be done within GitOps (discussed in Chapter 5). There are other situa- tions when you need to be able to allocate more memory or storage space. However, these overrides are the excep- tion and should be used sparingly. Enterprise deployments As we’ve discussed, the goal of Jenkins X is to provide de- velopers with a quick way to start building cloud native applications and getting started with Kubernetes. Devel- opers have to understand how to promote applications into production using GitOps. As you recall from Chapter 5, promoting an application means to either automati- cally or manually moving the application along your pipeline to the next stage. To support the needs of enter- prise teams, Jenkins X includes a number of features, 68

including preview environments and liveness and keepalives. Preview environments A preview environment is one of the important features of Jenkins X because it allows developers to automatically get feedback on changes made before it is merged into the master. Liveness and keepalives In Kubernetes when you start up a cluster, this function will check to see if the pod (a group of one or more con- tainers) is ready to accept traffic. Kubernetes will use a liveness probe to determine if the pod is ready to run. Once the pod is running, keepalive makes sure it is still running. If the pod is not running, liveness will create a new pod. Jenkins X and the value of abstraction This chapter provided you with the ability to get started quickly with Jenkins X and Kubernetes. In truth Kuber- netes out of the box is incredibly difficult to work with. For developers, it can take a long time to understand the basics – and even longer to become productive. Develop- ers who have begun their journey with Jenkins X don’t have to know the underlying details of Kubernetes before they can start delivering value. And, better yet, they can avoid common mistakes that could delay them from de- veloping cloud native applications fast. 69

Chapter 7 Resources for Getting Started with Jenkins X Inside » Increase your knowledge on continuous integra- tion, continuous delivery and DevOps » Preparing to build cloud native applications » Getting help with Kubernetes » Learning more about Jenkins X Jenkins X provides an abstracted platform to support the needs of developers to create cloud native applications leveraging Kubernetes. In this book, we have provided insights into the capabilities of Kubernetes and the Jen- kins X environment to support developers as they enter the world of DevOps and continuous integration and con- tinuous delivery services. In this chapter, we provide links to resources that will help your teams get started. Continuous integration, continuous delivery and DevOps resources What is DevOps? Building continuous delivery pipelines with Jenkins Business value of Jenkins X Master DevOps for software innovation 70

Cloud native resources The Cloud Native Computing Foundation offers a wealth of resources on its site: Cloud Native Computing Foundation There are a number of other sites that offer assistance in- cluding the following: What are cloud native applications? Cloud native SIG Kubernetes resources Before you can move forward, you need to understand Ku- bernetes as the key system for automating deployment and management of containerized applications. A variety of resources, including documentation, educational, and other relevant content can be found on the Kubernetes.io site: Kubernetes The GitHub development platform also offers some help- ful information on both Kubernetes and Jenkins X. Below are some useful links. Kubernetes on GitHub Kubernetes basics tutorial Serverless Kubernetes Jenkins X on GitHub Helm is the package manager for Kubernetes and includes Tiller, the server side implementation of Helm. Here is a link to help you understand and implement Helm: Quickstart guide to Helm 71

Learn more about Jenkins X Jenkins Jenkins X Jenkins X project Jenkins X on GitHub Under the Hood of Jenkins X Below are links to resources featuring James Strachan, CloudBees, Inc.’s distinguished engineer and chief ar- chitect of Jenkins X: Develop fast with an open source microservices platform Implementing CI/CD using Jenkins X on Kubernetes Using opinionated Kubernetes and Jenkins X for CD 72

CloudBees is a proud sponsor of the Jenkins community and we’re pleased to provide you with this book to help you on your cloud native journey. We know it is important to streamline your software de- livery processes and leveraging Kubernetes and Jenkins X in your cloud environment is an important first step. Indeed, Jenkins X is the solution that hides the complex- ity of Kubernetes and provides you with a well-tested, commercial platform. CloudBees has worked closely with the Jenkins community, with both of us doing the hard work of bringing together the most productive open source tools into a framework that helps your company be successful in the fast-paced world of cloud native soft- ware development, testing, deployment and manage- ment. Try the Jenkins X platform to see the difference! Getting started with Jenkins X For more information from CloudBees: Getting started with CI/CD and DevOps metrics Implementing CI/CD using Jenkins X on Kubernetes Using opinionated Kubernetes and Jenkins X for CD 73
